ProLine Series
HVAC/R Systems
Leave the pumping behind. Apply cleaners and rinse steadily, with no stopping and no pumping.

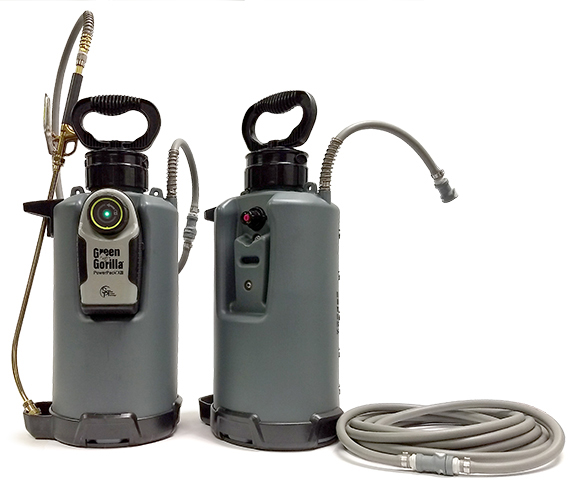

Introducing the Acf Dual Coil Cleaning System
A portable two tank system for residential and light commercial condenser and evaporator coil cleaning.
The rechargeable lithium-ion PowerPack automatically pressurizes the tank to maintain a constant pressure and flow rate for fast and effective coil cleaning. This system features separate tanks for coil cleaner and rinse water, ideal for remote locations where access to a water supply is not available. No more long hose runs throughout the kitchen area creating a safety hazard.
High pressure cleaning systems can damage fins and provide a flow that can overwhelm condensate drains, but the Green Gorilla operates at a safe steady pressure that will not harm delicate fins while providing a steady flow for a thorough cleaning.
For the HVAC/R industries, we've developed a two tank portable system that is optimized for cleaning and rinsing both air conditioning or refrigeration evaporator and condenser coils in residential and light commercial environments.
 Acf Dual Coil Clean |
||
|---|---|---|
| Acf Coil Clean | Acf Coil Rinse | |
| Qty Per System | 1 | 1 |
| Seal & Gasket Material | Viton® | EPDM & Buna-N |
| Operating Pressure | 20 psi | |
| Automatically Detects & Maintains Pressure | Yes | |
| Battery Life | 8 hours continuous spraying | |
| Charging | Wallcharger 110VaC | |
| User Replaceable Power Cells | 2 | |
| Tank Size | 2.5 gal | |
| Backup Manual Pump | Yes | |
| Tank Hose | 48" with inline dripless quick connects | |
| Hose Extension | 20ft hose extension with inline dripless quick connects | |
| Stress Relief Hose Springs | Yes | |
| Spray Wand (Standard Configuration) |
 |
|
| Optional Wands (Ideal for confined spaces) |
  |
|
- Backup Manual Pump
- Chemically Resistant Hose
- Wand holder
- Quick-Connect Adapter
- On/Off Button
- Connection Knob
- Power Level Indicators
- User Replaceable Power Cells
- Sunken PowerPack Pocket
- Built-in Drip Cup
Construction:
Material: Specially formulated high strength chemical and impact resistant HDPE
Fabrication: Proprietary custom blow molded technology
Strength: Thick walled - high burst pressure >60 psi
Chemical Resistance: Highly resistant to a wide range of chemicals
Endurance Test: Six foot drop test onto concrete (no affect) - more durable than metal
Sealing Surface: Specially designed post-machined sealing surface for O-ring seal
Capacity: 1.5 and 2.5 gal. (Easy-Fill extra wide mouth)
Connection Technology
Material: Acetal - high strength and chemical resistant
Seals: Available in Viton® or EPDM
Type: Patented "Quick-Connect™" system
Connection Products: PPX push-on/twist knob removal and Jgroove
Manual Depressurization: Yes - depress red button to depressurize tank
Safety Auto-Depressurization: Yes - automatic safety pressure release
Max Pressure: >50 psi
Hose
Material: Flexible reinforced double wall and highly resistant to a wide range of chemicals
Size/Color: 0.54" (OD) x 0.31" (ID) / Dark Grey
Strain Relief: Stainless springs.
Inline Quick Connects: Viton® seals, push button disconnect
End Connection: Brass compression sleeve onto 1/4" Male NPT
Manual Pump
Material: Chemical resistant Co-Polymer
Capacity: High capacity pump requires fewer strokes for higher pressure
Seals: Available in Viton® or EPDM
Housing:
Material: Space-age high strength Xenoy™ - Six foot drop test onto concrete (pass)
Color: Black over-mold with grey case
Over-mold: Santoprene™ - 50 durometer
Connection to Tank: Push-in to attach, twist knob to remove: Quick-Connect™
Micro Compressor
Type: Reciprocating Piston - high cycle life tested
Motor: Brush DC
Max Flow: 6.0 L/min
Max Pressure: 29 psi (200 Kpa)
Smart Pressure Technology™
Controller Type: Advanced microprocessor coupled with solid state high accuracy piezoresistive MEMS pressure sensor technology
User Adjustable: No
Factory Setting: 20 psi +- 5%
Hysteresis: 2 psi (factory adjustable)
Battery Technology
Type: Dual field replaceable rechargeable Li-Ion - 5200 mA-hr. @ 7.4Vdc
Recharge Time: ~5 hrs with 115 VAC wall charger
Recharge Method: Wall charger rated at 8.4 VDC, 1000 ma or 12 Vdc car charger
Charging Indicator: LED: Red = charging, Green = charged
Capacity Indicator: LED: Green = charged, Yellow = half charge, Red = discharged
Application Time: 6 - 8 hrs¹
Notes:
1) Application time assumes a 50% duty cycle and is dependent on the wand and tip configuration.
SPT
Engineered Precision
By automating the pressurization of our systems, we ensure that users apply the correct amount of product every time.
Users are also freed from pumping, allowing them to complete jobs faster and with less fatigue.
- Precise Application
- Faster Job Completion
- Increased Profits
- Built To Last
Green Gorilla was founded by engineers and developed with a simple goal in mind: manufacture a dependable, high quality automated sprayer that frees the user from the time consuming task of pumping.
Since we began in 2006 we've been hard at work to achieve just that.
