Work with digital precision, bringing your customers exact application and faster service, freeing you to get more done in less time.
Engineered For Work
For decades professionals have had to accept two things: they were going to have to pump their tanks all day, and the pressure would never be even. This meant lost time and uneven distribution of their product, and all they could do was work harder to overcome it.
At Green Gorilla, we've developed a line of delivery systems to put an end to that. With our battery operated sprayers, we give businesses the tools to work faster and with greater precision.
Our Industrial Systems are designed to fit many uses, from carpet cleaning to landscaping. Whatever your industry, we have the options you need.
Buy Now
 |
 |
|
|---|---|---|

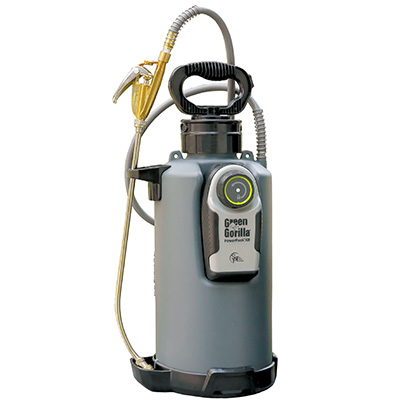

| ProLine Series | BigFoot Series | |
| Seal & Gasket Material | Viton® or EPDM | |
| Automatic Pressure Detection & Maintennce | Yes | |
| Pressure Detection Mechanism | All Digital Pressure Switch | Physical Pressure Switch |

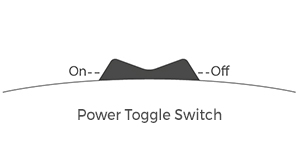

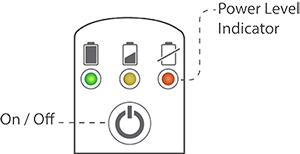

| PowerPack Interface |  |
 |

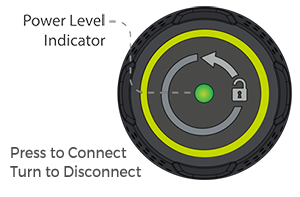

| Tank Connect / Disconnect |  |
 |
| Power Cell Replacement | User Replaceable | Factory Replaceable |
| Spray Handle |  |
|
| Sizes | 1.5 gal & 2.5 gal | |
| Hose Length | 4ft, 10ft, or 20ft (depending on model and options) |
|
| Stress Relief Hose Springs | Yes | |
| Backup Manual Pump | Yes | |

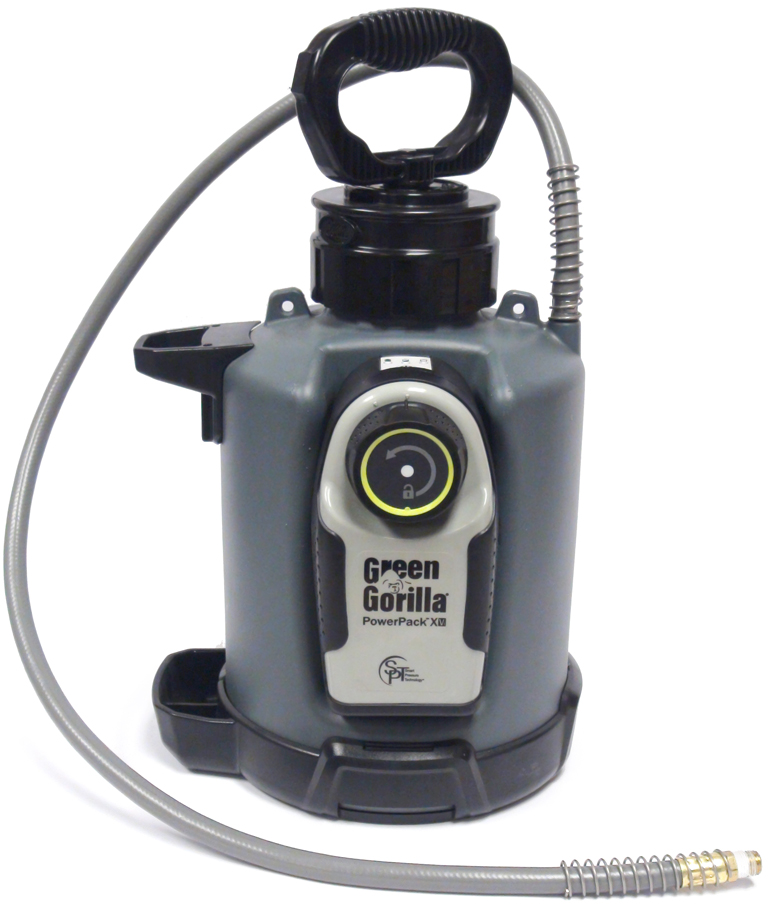

Tank Construction:
Material: Specially formulated high strength chemical and impact resistant HDPE
Fabrication: Proprietary custom blow molded technology
Strength: Thick walled - high burst pressure >60 psi
Chemical Resistance: Highly resistant to a wide range of chemicals
Endurance Test: Six foot drop test onto concrete (no affect) - more durable than metal
Sealing Surface: Specially designed post-machined sealing surface for O-ring seal
Capacity: 1.5 and 2.5 gal. (Easy-Fill extra wide mouth)
Connection Technology
Material: Acetal - high strength and chemical resistant
Seals: Available in Viton® or EPDM
Type: Patented "Quick-Connect™" system
Connection Products: PPX push-on/twist knob removal
Manual Depressurization: Yes - depress red button to depressurize tank
Safety Auto-Depressurization: Yes - automatic safety pressure release
Max Pressure: >50 psi
Hose
Material: Flexible reinforced PVC double wall and highly resistant to a wide range of chemicals
Size/Color: 0.54" (OD) x 0.31" (ID) x 48" (long) / Dark Grey
Strain Relief: Stainless springs available
End Connection: Brass compression sleeve onto 1/4" Male NPT
Manual Pump
Material: Chemical resistant Co-Polymer
Capacity: High capacity pump requires fewer strokes for higher pressure
Seals: Available in Viton® or EPDM

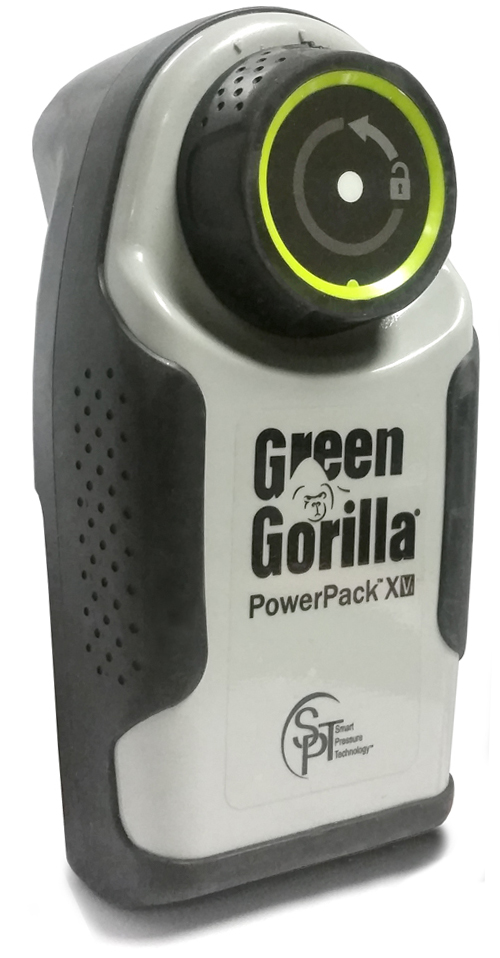

PowerPack Housing:
Material: Space-age high strength Xenoy™ - Six foot drop test onto concrete (pass)
Color: Black over-mold with grey case
Over-mold: Santoprene™ - 50 durometer
Connection to Tank: Push-in to attach, twist knob to remove: Quick-Connect™
Micro Compressor
Type: Reciprocating Piston - high cycle life tested
Motor: Brush DC
Max Flow: 6.0 L/min
Max Pressure: 29 psi (200 Kpa)
Smart Pressure Technology™
Controller Type: Advanced microprocessor coupled with solid state high accuracy piezoresistive MEMS pressure sensor technology
User Adjustable: No
Factory Setting: 20/18 psi +- 5%
Hysteresis: 2 psi (factory adjustable)
Battery Technology
Type: Dual field replaceable rechargeable Li-Ion - 5200 mA-hr. @ 7.4Vdc
Recharge Time: ~5 hrs with 115 VAC wall charger
Recharge Method: Wall charger rated at 8.4 VDC, 1000 ma or 12 Vdc car charger
Charging Indicator: LED: Red = charging, Green = charged
Capacity Indicator: LED: Green = charged, Yellow = half charge, Red = discharged
Application Time: 6 - 8 hrs

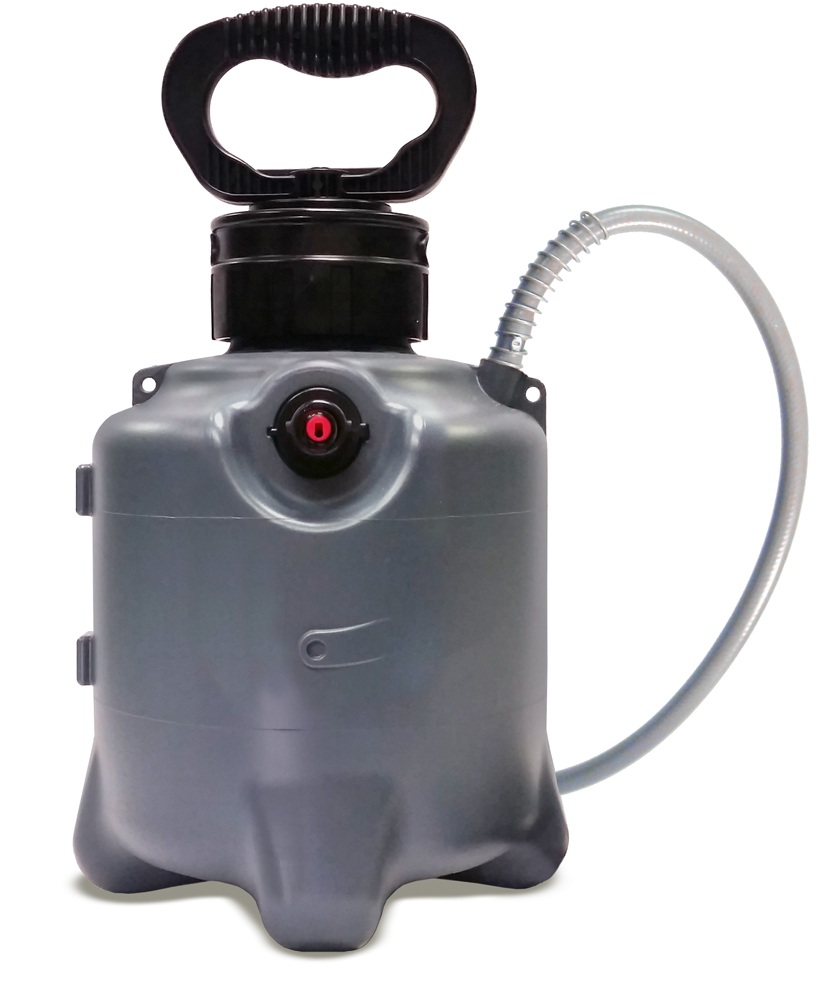

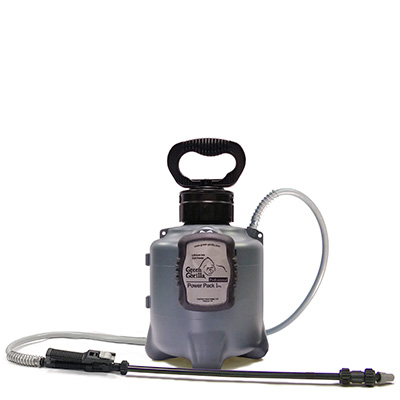

Tank Construction:
Material: Specially formulated high strength chemical and impact resistant material
Fabrication: Proprietary custom blow molded technology
Strength: Thick walled - high burst pressure >60 psi
Chemical Resistance: Highly resistant to a wide range of chemicals
Endurance Test: Six foot drop test onto concrete (no affect) - more durable than metal
Sealing Surface: Specially designed post-machined sealing surface for O-ring seal
Capacity: 1.5 and 2.5 gal. (Easy-Fill extra wide mouth)
Connection Technology
Material: Acetal - high strength and chemical resistant
Seals: Viton® or EPDM
Type: Patented "Quick-Connect™" system
Connection Products: Twist removal via Jgroove
Manual Depressurization: Yes - depress red button to depressurize tank
Safety Auto-Depressurization: Yes - automatic safety pressure release
Max Pressure: >50 psi
Hose
Material: Clear, flexible, and designed for good kink resistance
Size/Color: 0.68" (OD) x 0.43" (ID) x 10 ft. (long) / Gray

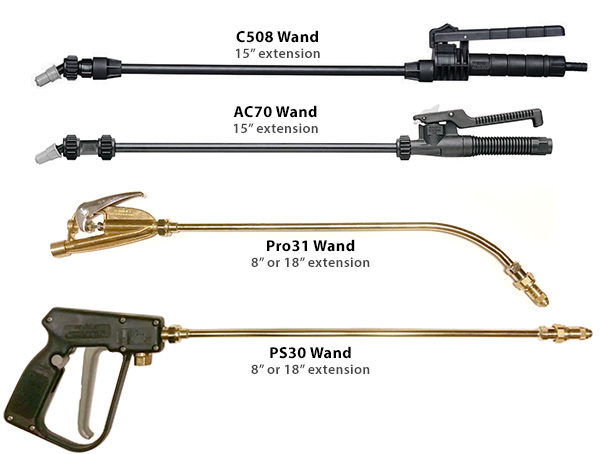

Wand: Several Options
Manual Pump
Material: Chemical resistant Co-Polymer
Capacity: High capacity pump requires fewer strokes for higher pressure
Seals: Viton® or EPDM

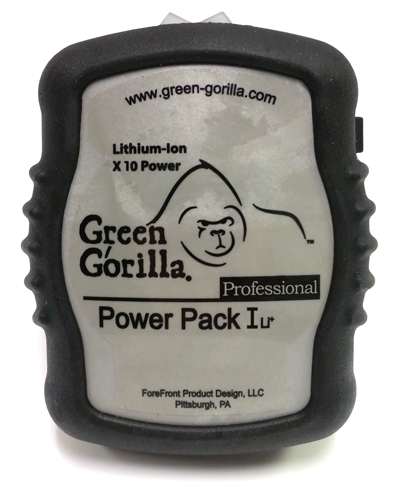

PowerPack Housing:
Material: High strength fiberglass infused xenoy
Color: Gray
Over-mold: Chemical resistant EPDM

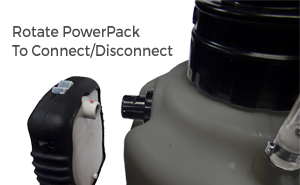

Connection to Tank: Easy-Twist Quick-Connect™
Seal: Rubber over-mold - IP-54 Dust/Splash Proof
Micro Compressor
Type: Reciprocating Piston - high cycle life tested
Motor: Brush DC
Max Flow: 4.0 L/min
Max Pressure: 21 psi (150 Kpa)
Pressure Control: Factory adjustable pressure switch automatically controls pressure
Battery Technology
Type: Rechargeable Li-Ion - 2600 mA-hr.
Recharge Time: ~4 hrs with 115 VAC wall charger
Recharge Method: Wall charger rated at 8.4 VDC, 500 ma or 12 Vdc car charger
Charging Indicator: LED, Red: Charging / Green: Charged
Run Time: 4 - 6 hrs continuous
SPT
Engineered Precision
By automating the pressurization of our systems, we ensure that users apply the correct amount of product every time.
Users are also freed from pumping, allowing them to complete jobs faster and with less fatigue.
- Precise Application
- Faster Job Completion
- Increased Profits
- Built To Last
Green Gorilla was founded by engineers and developed with a simple goal in mind: manufacture a dependable, high quality automated sprayer that frees the user from the time consuming task of pumping.
Since we began in 2006 we've been hard at work to achieve just that.
