Pest Control Sprayers | ProLine Vi Series

ProLine Series

Pest Control Systems

"The Importance of Calibration"
Read PCT Magazine's major feature article here,
which delves into the importance of sprayer accuracy to the pest control industry.


Our Green Gorilla system was part of the study at the University of Georgia. Our white paper "Future of Spraying in Pest Control: Automated Compressed Air Technology Vs. Manual Pump Systems" is a technical reference. Read it here.

Built for the PMP

By working hand-in-hand with industry experts, Green Gorilla has developed the first automated delivery system for pest control professionals.

Our patented Smart Pressure Technology ensures the pressure in the tank is matched by the pressure at the tip of the sprayer providing some real-world industry benefits.

The pest control industry is very labor intensive so not worrying about stopping to pump means you can concentrate on delivering the treatment, saving both time and money, while providing your customer with a higher-quality service.

It’s not 1950 anymore; isn’t it time for something better?


Buy Now

What People Are Saying

We have loyal customers all over the country who have given up pumping for good. They've seen first hand the benefits that Green Gorilla has to offer: protecting their bottom line and their workers.

John Faulkner

Owner of Faulkner Pest Service, Amarillo, TX

The Green Gorilla has been a great addition to our arsenal in serving our residential and commercial pest customers. We use the Green Gorilla as an outside perimeter treatment to control ants, cockroaches, and crickets. The battery pack allows us to perform the service quicker.

Timothy A. Regal

Owner of Regal Pest Control, LLC, Plymouth, MI

Having a compressed air sprayer that enabled a steady rate of delivery is, in my opinion, the next generation of spray technology. The lithium ion battery provides for consistent, uninterrupted service.

Keith Brooker

CEO of Paragon Pest Solutions, Inc., Brevard, FL

I purchased a Green Gorilla... for an employee who had been complaining of shoulder issues from constantly having to pump a backpack sprayer. Since then the employee loves it and the productivity has definitely increased. We plan on purchasing one for each of our service trucks.


Pressure Sprayer Green Gorilla ProLine Comparison Vi Series

Pest Control Series
Seal & Gasket Material Viton®
Operating Pressure 18 psi
Automatically Detects & Maintains Pressure Yes
PowerPack Interface Pressure Sprayer Green Gorilla ProLine Comparison Overlay Vi
Tank Connect / Disconnect Pressure Sprayer Green Gorilla ProLine Comparison Overlay Vi
User Replaceable Power Cells 1 or 2 w/Optional Upgrade

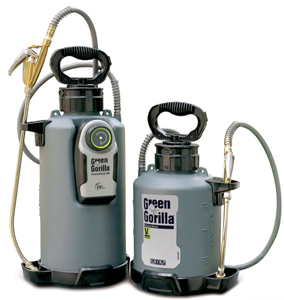

Sizes 1.5 gal & 2.5 gal

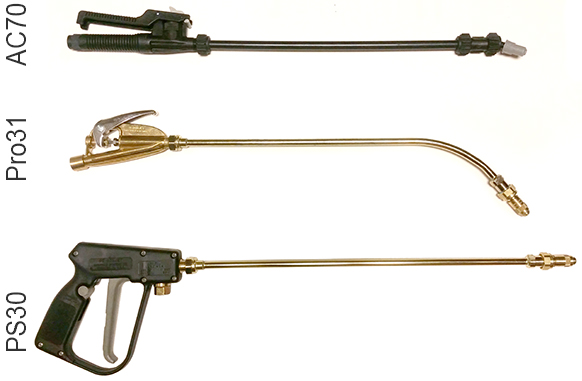

Available Wands Pressure Sprayer Green Gorilla ProLine Wands Vi
Stress Relief Hose Springs Yes
Backup Manual Pump Yes

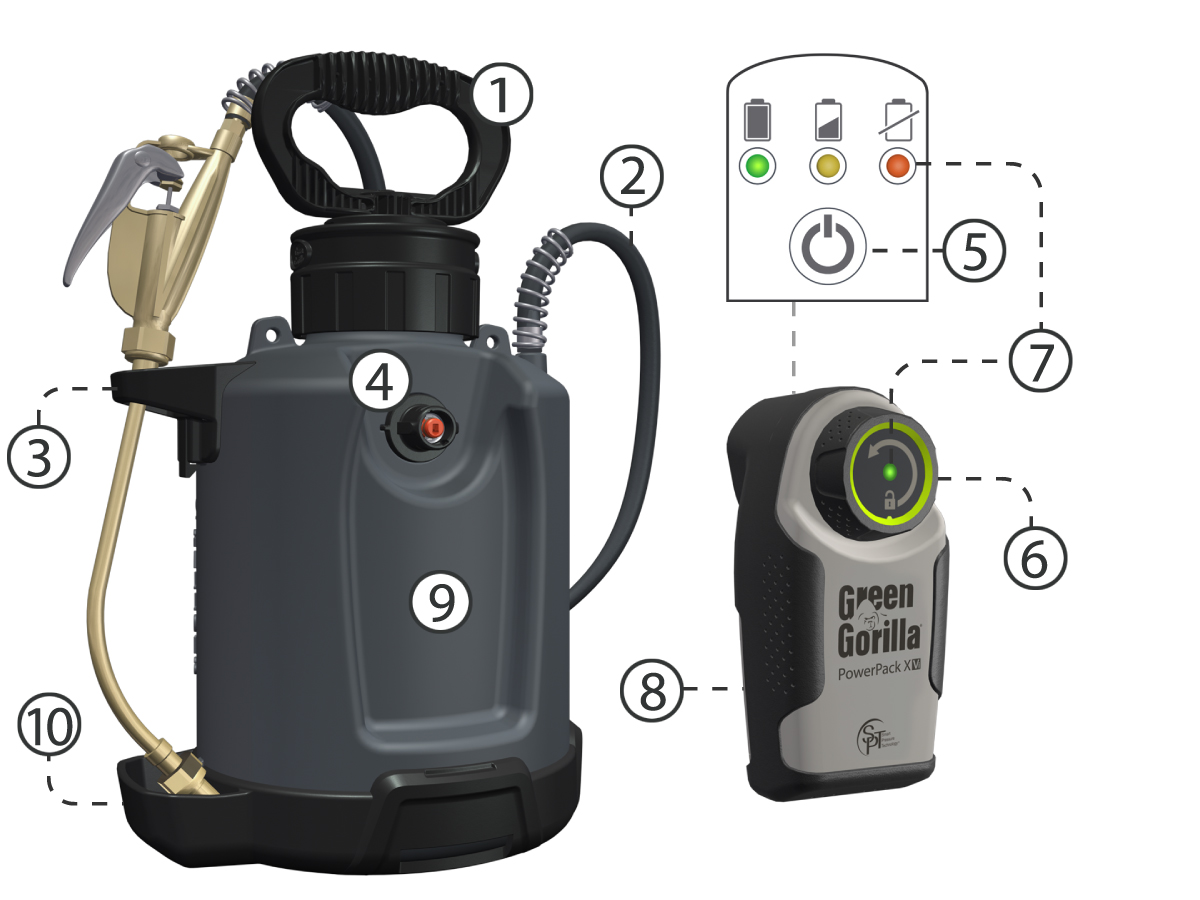

  1. Backup Manual Pump
  2. Chemically Resistant Hose
  3. Wand holder
  4. Quick-Connect Adapter
  5. On/Off Button
  6. Connection Knob
  7. Power Level Indicators
  8. User Replaceable Power Cells
  9. Sunken PowerPack Pocket
  10. Built-in Drip Cup
Proline Sprayer Tank

Construction:

Material: Specially formulated high strength chemical and impact resistant HDPE

Fabrication: Proprietary custom blow molded technology

Strength: Thick walled - high burst pressure >60 psi

Chemical Resistance: Highly resistant to a wide range of chemicals

Endurance Test: Six foot drop test onto concrete (no affect) - more durable than metal

Sealing Surface: Specially designed post-machined sealing surface for O-ring seal

Capacity: 1.5 and 2.5 gal. (Easy-Fill extra wide mouth)


Connection Technology

Material: Acetal - high strength and chemical resistant

Seals: Viton®

Type: Patented "Quick-Connect™" system

Connection Products: PPX push-on/twist knob removal and Jgroove

Manual Depressurization: Yes - depress red button to depressurize tank

Safety Auto-Depressurization: Yes - automatic safety pressure release

Max Pressure: >50 psi


Hose

Material: Flexible reinforced double wall and highly resistant to a wide range of chemicals

Size/Color: 0.54" (OD) x 0.31" (ID) x 48" (long) / Dark Grey

Strain Relief: Stainless springs available

End Connection: Brass compression sleeve onto 1/4" Male NPT


Manual Pump

Material: Chemical resistant Co-Polymer

Capacity: High capacity pump requires fewer strokes for higher pressure

Seals: Viton®

Proline Sprayer PowerPack

Housing:

Material: Space-age high strength Xenoy™ - Six foot drop test onto concrete (pass)

Color: Black over-mold with grey case

Over-mold: Santoprene™ - 50 durometer

Connection to Tank: Push-in to attach, twist knob to remove: Quick-Connect™


Micro Compressor

Type: Reciprocating Piston - high cycle life tested

Motor: Brush DC

Max Flow: 6.0 L/min

Max Pressure: 29 psi (200 Kpa)


Smart Pressure Technology™

Controller Type: Advanced microprocessor coupled with solid state high accuracy piezoresistive MEMS pressure sensor technology

User Adjustable: No

Factory Setting: 18 psi +- 5%

Hysteresis: 2 psi (factory adjustable)


Battery Technology

Type: Dual field replaceable rechargeable Li-Ion - 5200 mA-hr. @ 7.4Vdc

Recharge Time: ~5 hrs with 115 VAC wall charger

Recharge Method: Wall charger rated at 8.4 VDC, 1000 ma or 12 Vdc car charger

Charging Indicator: LED: Red = charging, Green = charged

Capacity Indicator: LED: Green = charged, Yellow = half charge, Red = discharged

Application Time: 4-5 hrs¹ (without Extended Life Upgrade)

Notes:

1) Application time assumes a 50% duty cycle and is dependent on the wand and tip configuration.

Proline SPT Logo

SPT

Engineered Precision

By automating the pressurization of our systems, we ensure that users apply the correct amount of product every time.

Users are also freed from pumping, allowing them to complete jobs faster and with less fatigue.

  • Precise Application
  • Faster Job Completion
  • Increased Profits
  • Built To Last
Learn More About SPT
